Project Settings - LCK Documentation

Accessing Settings

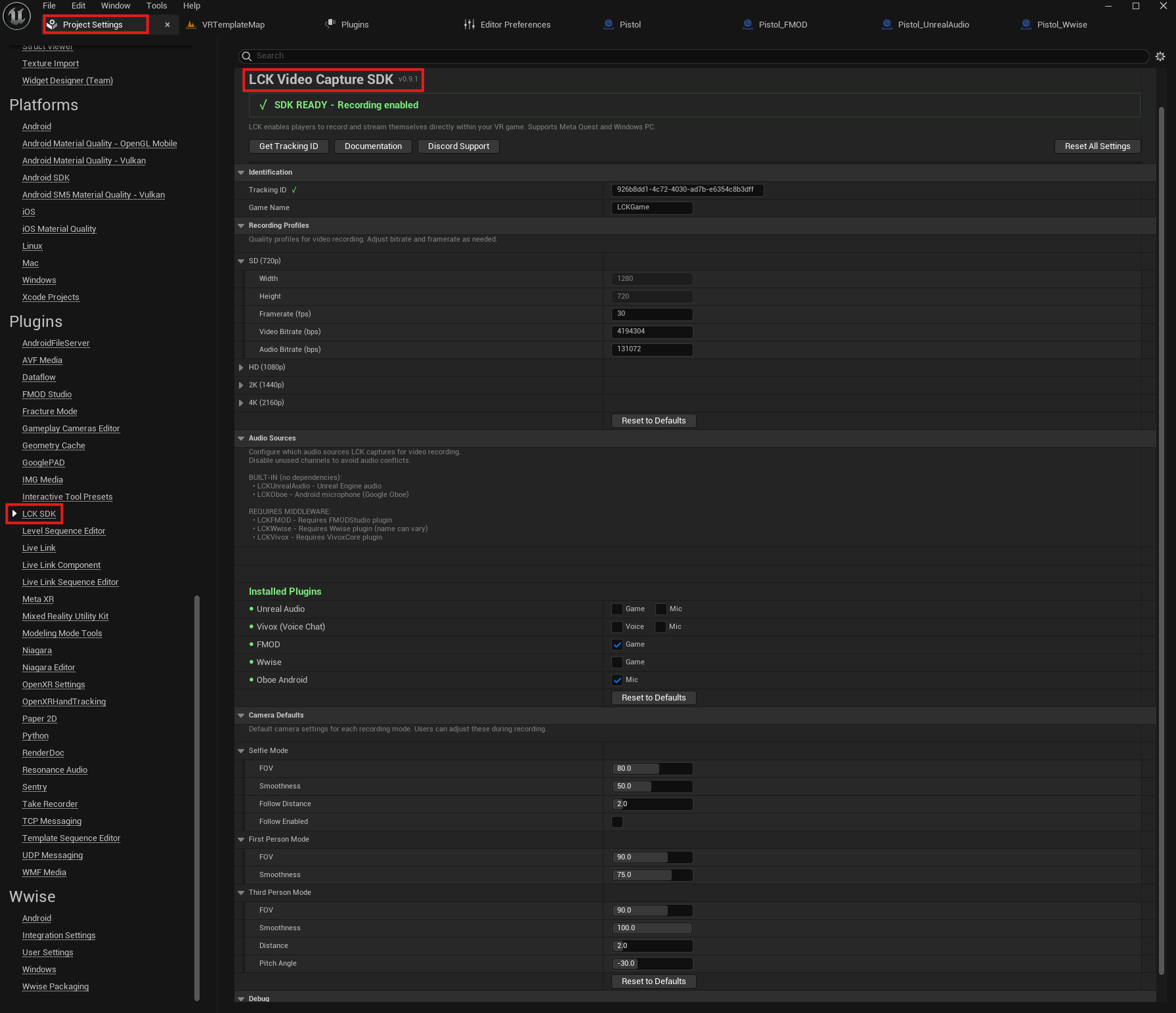

Navigate to Project Settings > Plugins > LCK SDK in the Unreal Editor. You can also access settings programmatically:

#include "LCKDeveloperSettings.h"

ULCKDeveloperSettings* Settings = ULCKDeveloperSettings::Get();

Identification

TrackingId

FString

required

Unique tracking ID (UUID v4 format) for your game.Get this from dev.liv.tv - recording will not work without a valid ID.

GameName

FString

Your game’s display name as it appears in LIV analytics and video metadata.

Features

bEnableStreaming

bool

default:"false"

Include RTMP streaming support in the build. When disabled, librtmp DLLs/SOs are not packaged, reducing APK/build size. Streaming API calls will fail at runtime if this is false.

bEnableStreaming defaults to false. You must enable it before any streaming functionality (authentication, live streaming) will work. See the Streaming Overview for full prerequisites.

Encoder Lifecycle

The encoder is ref-counted. Multiple consumers (recording, streaming) can share a single encoder instance.

AcquireEncoder

function

Acquires a reference to the encoder. Creates and starts it on the first call. Returns false if the encoder cannot be created.

UFUNCTION(BlueprintCallable, Category = "LCK")
bool AcquireEncoder(
    bool bNeedsDisk = false,
    int32 VideoBitrateOverride = 0,
    int32 AudioBitrateOverride = 0
);

Parameter	Type	Default	Description
`bNeedsDisk`	`bool`	`false`	If `true`, ensures the encoder writes to an MP4 file. If the encoder is already running without disk output, it restarts with disk enabled.
`VideoBitrateOverride`	`int32`	`0`	Override video bitrate (bps). `0` uses the profile default.
`AudioBitrateOverride`	`int32`	`0`	Override audio bitrate (bps). `0` uses the profile default.

ReleaseEncoder

function

Releases a reference to the encoder. When the ref count reaches zero, the encoder stops.

UFUNCTION(BlueprintCallable, Category = "LCK")
void ReleaseEncoder(bool bSaveFile = false);

Parameter	Type	Default	Description
`bSaveFile`	`bool`	`false`	If `true` and ref count hits zero, saves the recording to the gallery/Movies folder before stopping.

Every AcquireEncoder() call must be paired with a ReleaseEncoder() call. Mismatched calls will either leak GPU resources (missing release) or stop the encoder while other consumers are active (extra release).

Recording Profiles

Four quality profiles are available, each with configurable settings:

SD (720p)
HD (1080p)
2K (1440p)
4K (2160p)

Setting	Default	Range	Description
Width	1280	Fixed	Video width in pixels
Height	720	Fixed	Video height in pixels
Framerate	30	15-120	Target FPS
VideoBitrate	4,000,000	500K-100M	Video bitrate (bps)
AudioBitrate	128,000	64K-512K	Audio bitrate (bps)
Samplerate	48000	Auto	Audio sample rate (Hz)

Setting	Default	Range	Description
Width	1920	Fixed	Video width in pixels
Height	1080	Fixed	Video height in pixels
Framerate	60	15-120	Target FPS
VideoBitrate	12,000,000	500K-100M	Video bitrate (bps)
AudioBitrate	256,000	64K-512K	Audio bitrate (bps)
Samplerate	48000	Auto	Audio sample rate (Hz)

Setting	Default	Range	Description
Width	2560	Fixed	Video width in pixels
Height	1440	Fixed	Video height in pixels
Framerate	60	15-120	Target FPS
VideoBitrate	20,000,000	500K-100M	Video bitrate (bps)
AudioBitrate	320,000	64K-512K	Audio bitrate (bps)
Samplerate	48000	Auto	Audio sample rate (Hz)

Setting	Default	Range	Description
Width	3840	Fixed	Video width in pixels
Height	2160	Fixed	Video height in pixels
Framerate	60	15-120	Target FPS
VideoBitrate	35,000,000	500K-100M	Video bitrate (bps)
AudioBitrate	320,000	64K-512K	Audio bitrate (bps)
Samplerate	48000	Auto	Audio sample rate (Hz)

For Meta Quest devices, start with HD (1080p) at 30 FPS. Higher resolutions may impact game performance.

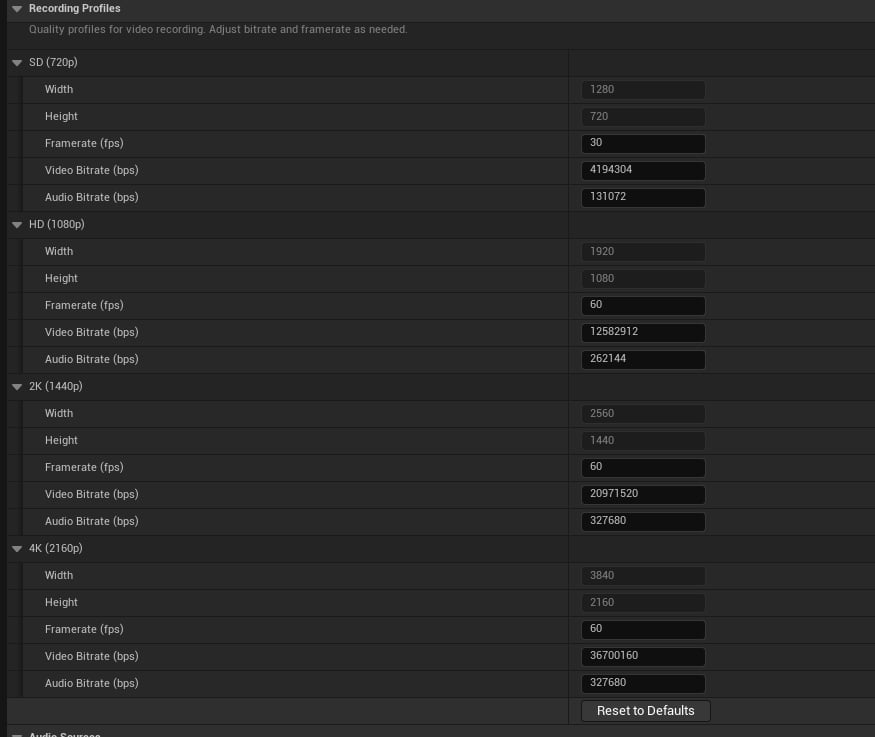

Customizing Profiles in Developer Settings

Recording profiles can be modified in the plugin settings to override the defaults:

Audio Sources

Configure which audio sources are used for capture. Each plugin type has specific channel support.

Unreal Audio

Built-in Unreal Engine audio capture. Disable channels here if another plugin handles them.

Setting	Default	Description
Microphone	true	Enable microphone capture
Game Audio	true	Enable game audio capture

If using FMOD or Wwise for game audio, disable “Game Audio” here to avoid conflicts.

Vivox (Voice Chat)

Vivox voice chat capture. NOT a game audio middleware — can safely coexist with FMOD/Wwise.

Setting	Default	Description
Microphone	true	Capture your voice
Voice Audio	true	Capture incoming voice chat

FMOD

FMOD audio middleware capture (game audio only).

Setting	Default	Description
Game Audio	true	Capture FMOD output

Wwise

Wwise audio middleware capture (game audio only).

Setting	Default	Description
Game Audio	true	Capture Wwise output

Oboe (Android)

High-performance microphone capture on Android using Google’s Oboe library.

Setting	Default	Description
Microphone	true	Enable low-latency mic capture

Game audio middleware priority: FMOD > Wwise > UnrealAudio. Only one game audio source will be active at a time.

Camera Mode Defaults

Selfie Mode

Setting	Default	Range	Description
FOV	80.0	20-120	Field of view (degrees)
Smoothness	50.0	0-100	Camera movement smoothness (%)
FollowDistance	2.0	0.5-10	Distance when following (meters)
bFollowEnabled	false	-	Start with follow mode active

First Person Mode

Setting	Default	Range	Description
FOV	90.0	20-120	Field of view (degrees)
Smoothness	75.0	0-100	Camera movement smoothness (%)

Third Person Mode

Setting	Default	Range	Description
FOV	90.0	20-120	Field of view (degrees)
Smoothness	100.0	0-100	Camera movement smoothness (%)
Distance	2.0	0.5-10	Camera distance (meters)
PitchAngle	-30.0	-90-90	Vertical angle (degrees)

Internal Constants

These values are used internally and are not editable:

Setting	Value	Description
NotificationDisplayTime	3.0s	How long notifications appear
PhotoFlashAnimationTime	0.5s	Photo capture flash duration
ButtonCooldownTime	0.25s	UI button cooldown
FOVStep	5.0	FOV increment per button press
SmoothnessStep	5.0	Smoothness increment
DistanceStep	0.5	Distance increment

Validation

Audio Configuration Validation

FLCKAudioConfigValidation Validation = Settings->ValidateAudioConfig();

if (!Validation.bIsValid)
{
    for (const FString& Warning : Validation.Warnings)
    {
        UE_LOG(LogLCK, Warning, TEXT("%s"), *Warning);
    }
}

// Check active audio type
ELCKGameAudioType ActiveType = Validation.ActiveGameAudio;

Build Info

// Get loaded audio plugins
TArray<FLCKAudioPluginInfo> Plugins = Settings->GetLoadedAudioPlugins();

// Get formatted build info
FString BuildInfo = Settings->GetBuildInfoDescription();

Configuration File

Settings are saved in Config/DefaultGame.ini:

[/Script/LCKCore.LCKDeveloperSettings]
TrackingId=0000
GameName=MyGame

; Recording profiles
Profile_SD=(Width=1280,Height=720,Framerate=30,VideoBitrate=4000000,AudioBitrate=128000)
Profile_HD=(Width=1920,Height=1080,Framerate=60,VideoBitrate=12000000,AudioBitrate=256000)

; Audio sources
AudioSource_Unreal=(bMicrophoneEnabled=True,bGameAudioEnabled=True)
AudioSource_FMOD=(bGameAudioEnabled=True)

; Camera defaults
SelfieMode=(FOV=80.0,Smoothness=50.0,FollowDistance=2.0,bFollowEnabled=False)
